TimbyrNode

​​​​​​​​​​

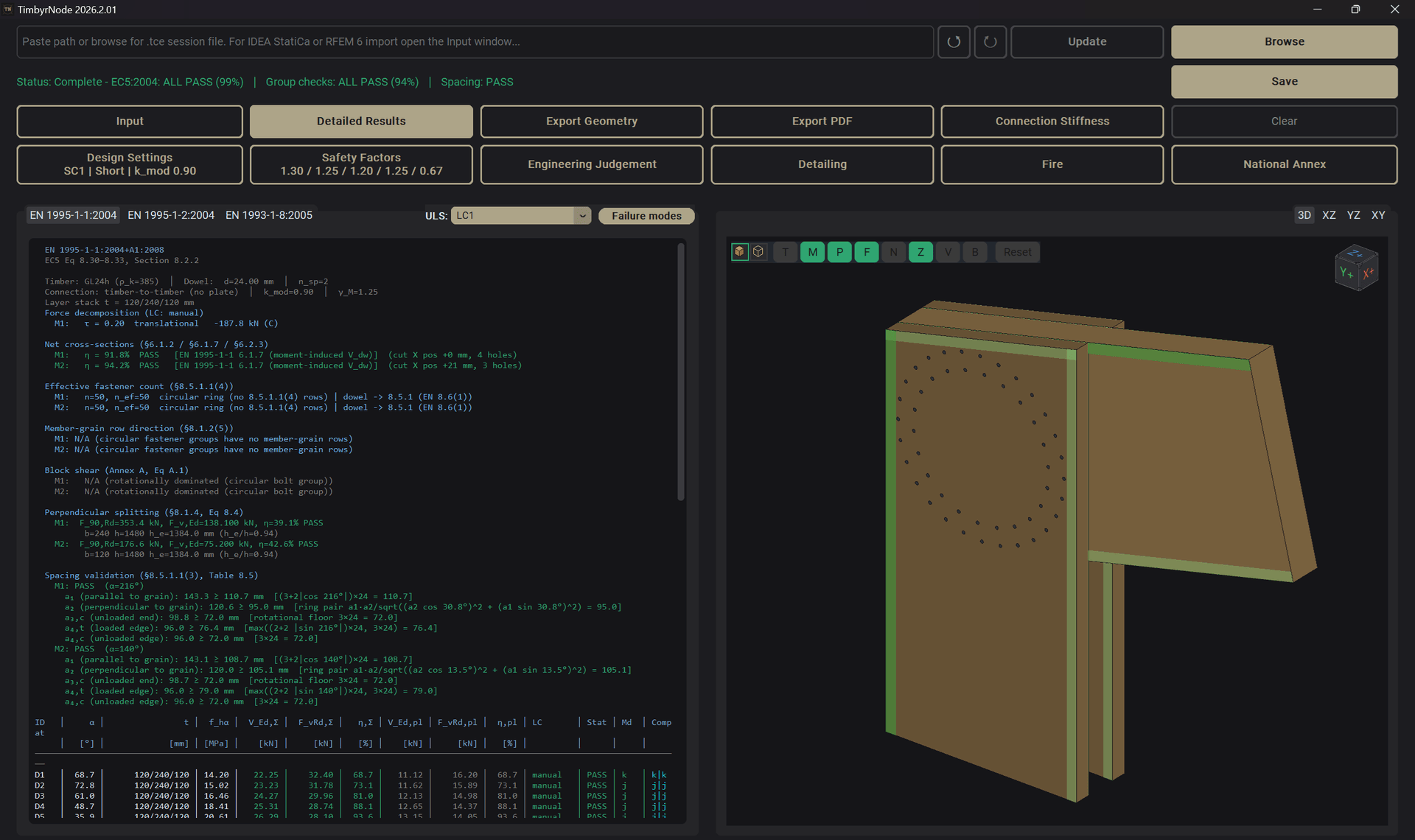

TimbyrNode reduces timber connection design and detailing time from days to hours, and from hours to minutes. It designs dowelled and bolted mass timber connections to Eurocode 5 - driven by your own manual input, a Dlubal RFEM 6 model or IDEA StatiCa Connection files. Bolts, dowels and self-drilling dowels are the core. The Rothoblaas SBD and SFS WS-T ranges are built in with each product's catalogue name carried straight into the exports. Screws and nails are supported as well. Within a minute it guides you to a manufacture-ready physical connection. For Tekla Structures the omnidirectional auto-alignment algorithm adjusts the plate polygons and fasteners so the inevitable slight differences between the physical and analytical models are automatically corrected. The detailer's effort is only a few clicks. It also exports to IFC, DXF and STEP. For the workshop it produces dimensioned fabrication-ready drawings, and for plasma and laser cutting it produces flat plate cut files in DXF. Calculation reports are available in English and German.​​
